Description

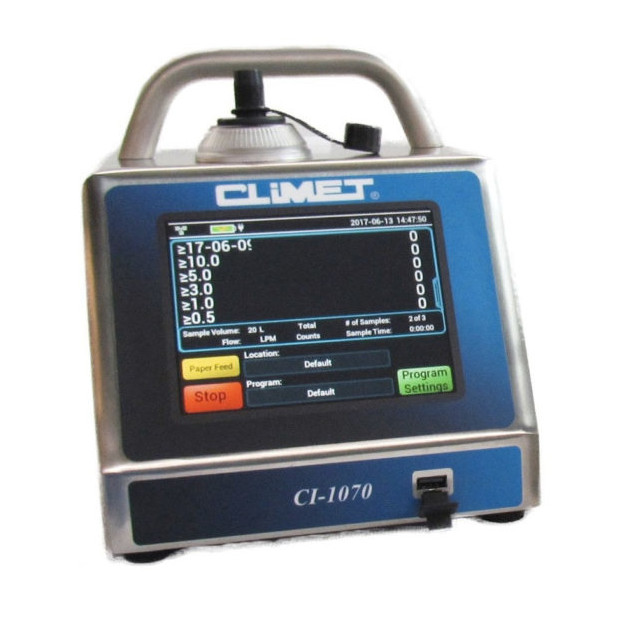

With the most advanced technology and features, the smallest and lightest of its class, the NextGen x70 series 6-channel particle counters allow you to measure at 1 CFM (28.3 LPM), 50 LPM, 75 LPM and 100 LPM. It offers the possibility to analyze 1 m3 of sample up to 10 min and the ease of transport with its very light construction. It supports USB, Ethernet connections as standard, as well as many new features such as light ring and blower technology.
| Models | CI-170 | CI-570 | CI-770 | CI-1070 |
|---|---|---|---|---|
| Flow Rate | 1 CFM | 50 LPM | 75 LPM | 100 LPM |
| Duration (1m3 sample) | 35.3 minutes | 20 minutes | 13.3 minutes | 10 minutes |
| Sizes | 0.3, 0.5, 1.0, 3.0, 5.0 and 10.0 µm | 0.3, 0.5, 1.0, 3.0, 5.0 and 10.0 µm | 0.3, 0.5, 1.0, 3.0, 5.0 and 10.0 µm | 0.5, 1.0, 3.0, 5.0, 10.0 and 25 µm |
| HEPA Filter | Yes | Yes | Yes | Yes |
| Printer | Yes | Yes | Yes | Yes |
| RS-232 Serial Interface | Yes | Yes | Yes | Yes |
| Ethernet | Yes | Yes | Yes | Yes |
| USB | Yes | Yes | Yes | Yes |
| Battery | Yes | Yes | Yes | Yes |
| Wi-Fi | Yes | Yes | Yes | Yes |
SOURCE: Climet
Innovations and Features
6- channels: 0.3 µm to 10 µm, some models up to 25 µm
Simplified Unit-to-Unit Cloning
Security: 4-levels of user security with user authentication
Display is a color LCD (cellphone-type) capacitive touch screen display (pinch to zoom, swipe to scroll)
Weight: 4.26 kg with battery installed! Lightest!
Dimensions: 21.28 x 18.8 x 24.08 cm Smallest footprint!
New ultra-quiet / ultra-clean blower technology
Network time server synchronization - First on the market!
AC or Battery Operation
Battery: Single lithium-ion for up to 6 hours of continuous operation - That's a 100% duty cycle with a zero-count filter installed.
Sample Data Storage - Up to a million samples or more!
User IDs: 100, and factory expandable!
Location IDs: 100, and factory expandable!
Programs: 100, and factory expandable!
Light Ring: New user-configurable status and alarms (enable/disable, 5-colors, patters, etc.)
Audible Tone: user-configurable multi-pitch beep on count and alarm
Fully integrated thermal printer and battery charger
Fully compliant with VHP
